YWZ Oil Level & Temperature Gauge
The YWZ gauge provides clear, direct monitoring of oil level and temperature in hydraulic reservoirs, lubrication systems, cooling tanks and gearboxes.
Technical Specifications
| Product Type | Oil Level & Temperature Gauge |
|---|---|
| Model Series | YWZ / YWZ-T |
| Mounting Center | 76–500 mm |
| Temperature Range | −20°C to +100°C |
| Working Pressure | 0.10–0.15 MPa |
| Connection | M10 standard; other options on request |
| Application | Hydraulic oil tanks and lubrication systems |
- Standard and custom specifications are available.
- Drawing and sample-based customization is supported.
Oil Level Indicator
Product Description
The YWZ Oil Level & Temperature Gauge is a side-mounted visual indicator designed for hydraulic reservoirs, lubrication units, cooling tanks and gearbox oil systems. It enables operators to observe the fluid level directly through the transparent viewing window. The T-type model also provides an integrated temperature indication from −20°C to +100°C.
The gauge is installed vertically on the side wall of the reservoir using two mounting bolts. The model number normally represents the center-to-center distance between the mounting connections. For example, YWZ-150T has a 150 mm mounting center, while “T” indicates the temperature-reading version.

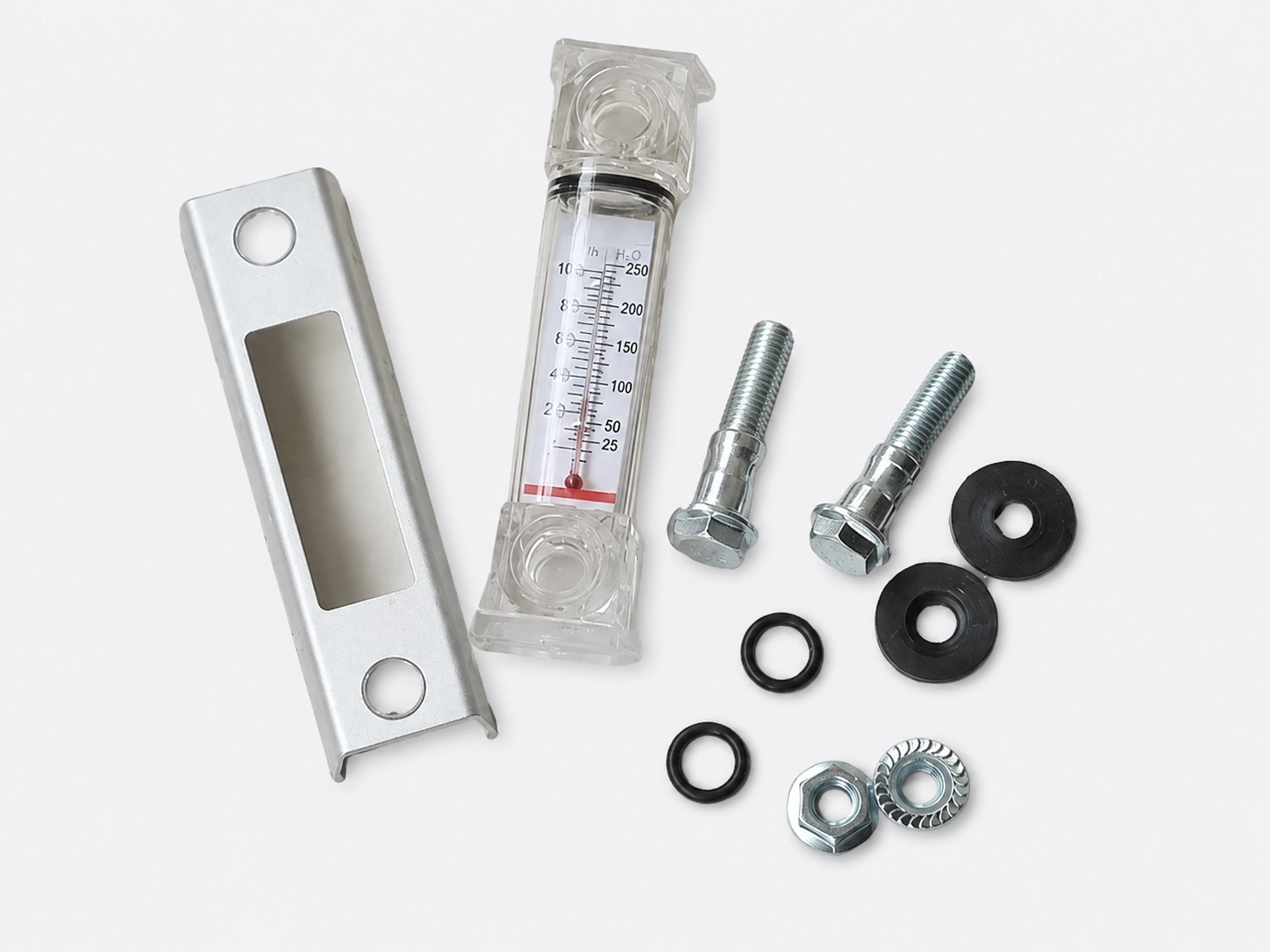

A protective housing helps shield the transparent indicator from accidental impact. Sealing washers installed between the gauge and tank wall help provide a secure, leak-resistant connection. Its compact construction and clear display make the YWZ series suitable for routine inspection of oil level and operating temperature without electrical power.
Common applications include:
Hydraulic power units
Machine-tool oil tanks
Industrial lubrication systems
Gearboxes and reduction units
Mobile and construction equipment
Cooling and circulating-oil reservoirs
Size
| MODEL | Size(mm) | Size(mm) | Size(mm) |
|---|---|---|---|
| MODEL | L (Length) | E (C-C) | B (Visible Length) |
| YWZ-76 | 106 | 76 | 37 |
| YWZ-76T | 106 | 76 | 37 |
| YWZ-80 | 110 | 80 | 42 |
| YWZ-80T | 110 | 80 | 42 |
| YWZ-100 | 130 | 100 | 62 |
| YWZ-100T | 130 | 100 | 62 |
| YWZ-125 | 155 | 125 | 87 |
| YWZ-125T | 155 | 125 | 87 |
| YWZ-127 | 157 | 127 | 89 |
| YWZ-127T | 157 | 127 | 89 |
| YWZ-150 | 180 | 150 | 112 |
| YWZ-150T | 180 | 150 | 112 |
| YWZ-160 | 190 | 160 | 122 |
| YWZ-160T | 190 | 160 | 122 |
| YWZ-200 | 230 | 200 | 162 |
| YWZ-200T | 230 | 200 | 162 |
| YWZ-250 | 280 | 250 | 212 |
| YWZ-250T | 280 | 250 | 212 |
| YWZ-254 | 284 | 254 | 215 |
| YWZ-254T | 284 | 254 | 215 |
| YWZ-300T | 330 | 300 | 262 |
| YWZ-350T | 380 | 350 | 312 |
| YWZ-400T | 430 | 400 | 362 |
| YWZ-450T | 480 | 450 | 412 |
| YWZ-500T | 530 | 500 | 462 |
