Sight Glass with Hole

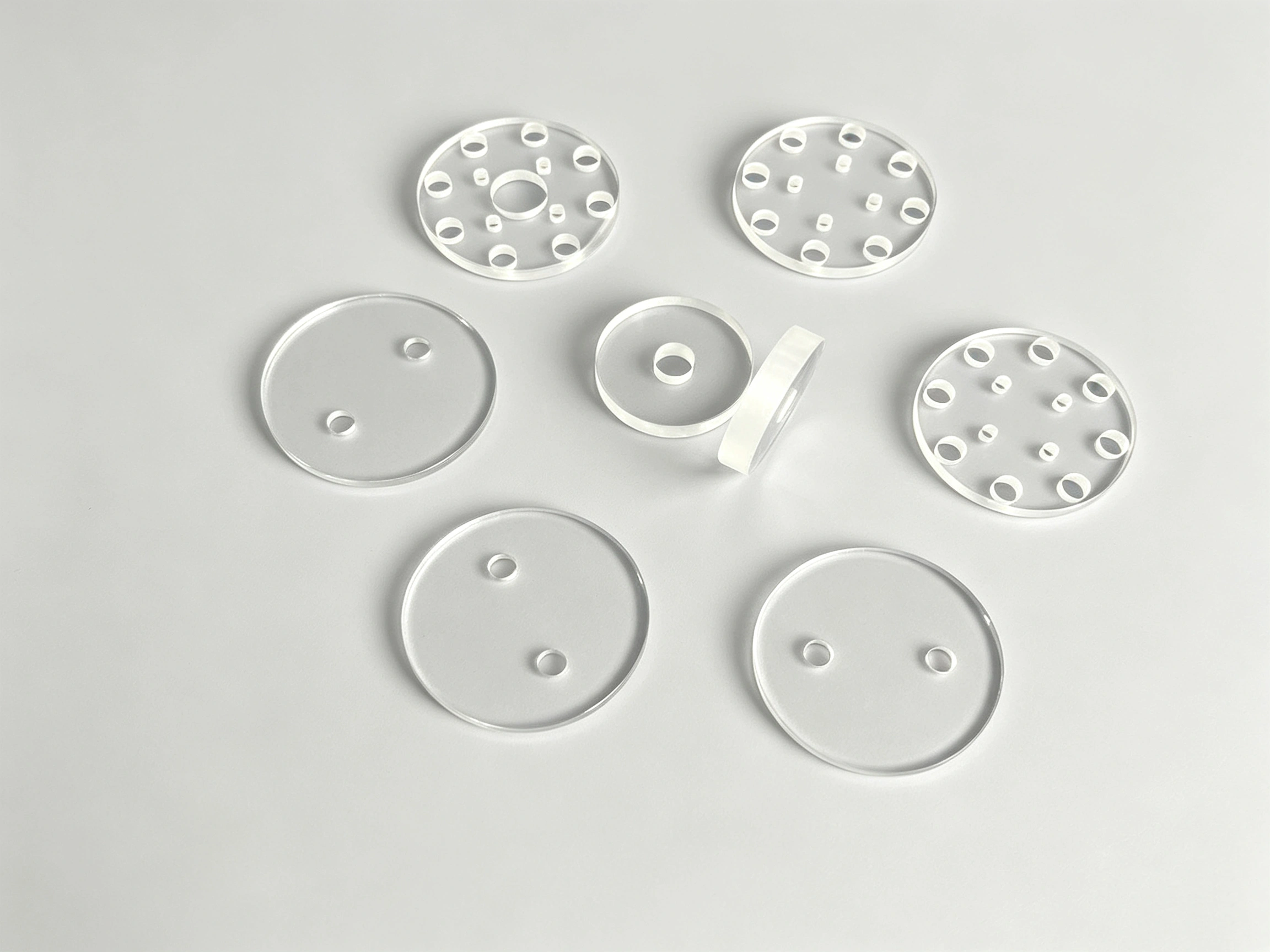

Sight Glass with Hole provides clear process observation and accommodates a wiper, shaft, sensor or mounting component.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Sight Glass Disc with Hole |
| Material | Soda-Lime, Borosilicate, Aluminosilicate or Quartz Glass |
| Shape | Round, with Central or Custom-Positioned Hole |
| Standard | DIN 7080 / DIN 8902 Reference or Custom Drawing |
- Borosilicate, aluminosilicate, quartz and soda-lime glass are available.
- Standard and custom sizes are available.
- Compatible gaskets and accessories are available upon request.
Circular Sight Glass
Product Description
Sight Glass with Hole is a circular glass viewing disc manufactured with one or more accurately machined openings. It is installed in tanks, pipelines, reactors, vessels, flow indicators and other industrial equipment to provide direct visual observation of liquids, gases or internal process conditions.
The hole may be positioned in the center for a mechanical wiper, shaft or cleaning device. Off-center holes and multiple-hole configurations can also be produced for sensors, fasteners, lighting components or equipment-specific mounting requirements.
Glass material is selected according to the operating temperature, thermal cycling, process medium and mechanical requirements. Borosilicate glass is commonly used for industrial pressure-duty applications because of its low thermal expansion and good chemical resistance. Soda-lime glass is suitable for moderate-temperature service, while aluminosilicate and quartz glass are available for more demanding thermal conditions.
The outer diameter, thickness, hole diameter, hole position and edge finish can be manufactured according to drawings or samples. Glass surfaces can be ground and polished to maintain clear visibility, while the outer and inner edges can be ground, polished or chamfered to reduce sharp edges and improve installation safety.
Key Features and Advantages
Custom Hole Configuration Central, off-center or multiple holes can be produced for wipers, sensors and mounting components.
Clear Process Observation Ground and polished viewing surfaces provide direct visual inspection of liquid level, flow and process condition.
Multiple Glass Materials Material options cover moderate-temperature, chemically demanding and high-temperature applications.
Precision Machining Diameter, thickness, hole size and edge treatment can be manufactured according to drawings or samples.
Accessory Compatibility Gaskets, mica shields, wiper components and other sealing accessories can be supplied on request.
Replacement and OEM Supply Suitable for replacement parts, equipment maintenance and customized industrial assemblies.
Sizes
Sight Glass with Hole can be produced in outer diameters from approximately 10 mm to 420 mm and thicknesses from 1 mm to 30 mm. Larger or thicker discs can be evaluated according to the application and manufacturing requirements.
A 10.5 mm central hole is commonly used for mechanical wiper systems. Other hole diameters, off-center openings and multiple-hole arrangements are available according to customer drawings.
Frequently Asked Questions (FAQ)
Q: Which material should I choose?
A: Choose soda-lime glass for moderate-temperature and economical applications. Borosilicate glass 3.3 is generally preferred for industrial process equipment operating at temperatures up to approximately 280°C under suitable pressure-duty conditions. Aluminosilicate or quartz glass may be considered for higher-temperature applications.
Q: What information is required for customization?
A: Please provide the glass material, outer diameter, thickness, hole diameter and position, operating temperature, design pressure, process medium, installation drawing and required accessories. A sample can also be used when the original dimensions are unavailable.
Q: Can gaskets and wiper accessories be supplied together?
A: Yes. Compatible sealing gaskets, mica shields, mechanical wiper components and related accessories can be supplied according to the sight-glass fitting and operating conditions.
