Industrial Gasket Paper

Industrial gasket paper is a flexible fiber-and-latex sealing sheet designed for cutting or laminating gaskets used in engines, gearboxes, pumps and industrial machinery.

Technical Specifications

Product Type	Gasket
Other Names	Latex Paper Sheet / Beater Sheet
Material	Selected fibers, synthetic latex and fillers
Types	Vulcanized / Non-Vulcanized
Supply Form	Sheets, Rolls or gasket

Standard and custom specifications are available.
Drawing and sample-based customization is supported.

Request a Quote

Gaskets & Accessories

Product Description

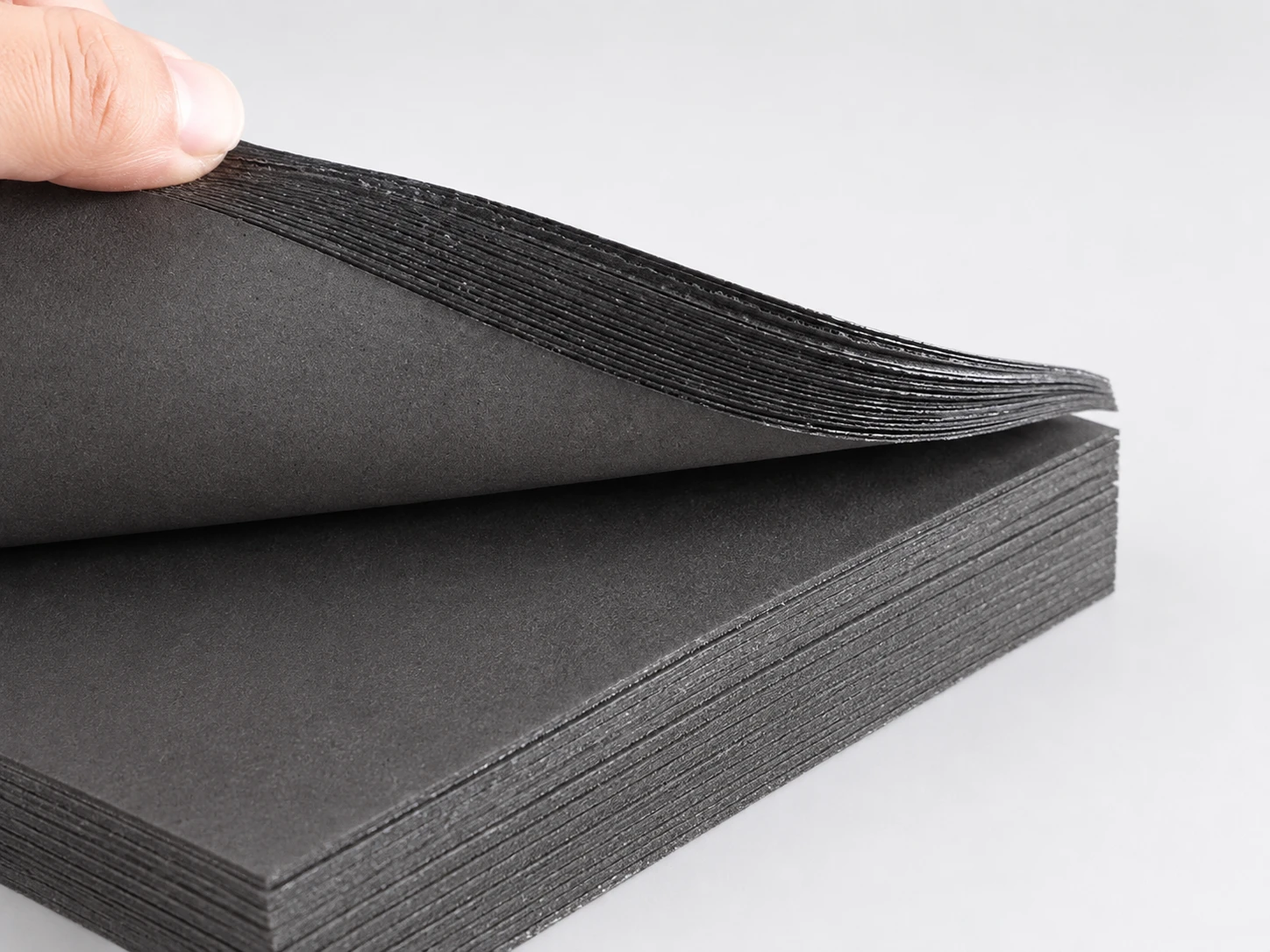

Industrial Gasket Paper, also known as Latex Paper Sheet, Beater Sheet or Beater-Addition Gasket Paper, is manufactured from selected fibers, synthetic latex binder and functional fillers through a wet-forming process.

The material provides good compressibility and recovery, helping it conform to minor surface irregularities and form a reliable seal under moderate flange loads. It is commonly used with lubricating oil, fuel, water and similar media in automotive and general industrial equipment.

Industrial gasket paper can be supplied in non-vulcanized or vulcanized form. Non-vulcanized paper is softer and more compressible, making it suitable for lamination with tinplate or other reinforcing materials. Vulcanized paper has a smoother surface, higher density and greater mechanical strength, allowing it to be cut directly into finished gaskets.

Typical applications include engine covers, oil pans, gearboxes, pumps, compressors, agricultural machinery, motorcycles and other mechanical sealing components. The material may also be punched or die-cut into custom gasket shapes.

Property	Non-Vulcanized Type	Vulcanized Type
Surface	Soft, paper-like	Smooth and dense
Density	0.9–1.1 g/cm³	1.2–1.4 g/cm³
Compressibility	Higher	Moderate
Mechanical Strength	Standard	Higher
Typical Temperature	Up to 150°C	Up to 200°C
Typical Use	Composite or metal-laminated gaskets	Direct-cut gaskets

Size

Standard Sheet Sizes

Width: 500mm; 1000mm; 1200mm Length: 500mm; 1000mm; 1200mm; 1300mm Thickness: 0.3~2.0mm

500 × 500 mm; 500 × 1000 mm; 915 x 1220 mm

1000 × 1000 mm; 1000 × 1200 mm; 1000 × 1300 mm

1200 x1250 mm; 1200 x1350 mm

Thickness: 0.3 mm – 2.0 mm

Standard thicknesses including:0.3, 0.5, 0.6, 0.8, 1.0, 1.2, 1.5 and 2.0 mm

Other sheet dimensions, roll lengths, thicknesses and die-cut gasket shapes can be produced according to customer drawings or samples.

CUSTOM MANUFACTURING

Need a Custom Size or Specification?

Send your drawing, sample, dimensions, material requirements, operating temperature, pressure and process medium. We will review the application and confirm the suitable product specification before production.

Talk to Our Team

Standard products and OEM/ODM solutions available.
