Acrylic Bolt-On Oil Level Indicators
A clear acrylic level indicator for direct, power-free oil monitoring in transformers, conservator tanks, reservoirs, and industrial equipment.
Technical Specifications
| Product Type | Oil Level Indicator |
|---|---|
| Body Material | Transparent Acrylic (PMMA) |
| Installation | Two-Bolt Vertical Mounting |
| Level Indication | Direct Visual Reading |
- Standard and custom specifications are available.
- Drawing and sample-based customization is supported.
Oil Level Indicator
Product Description

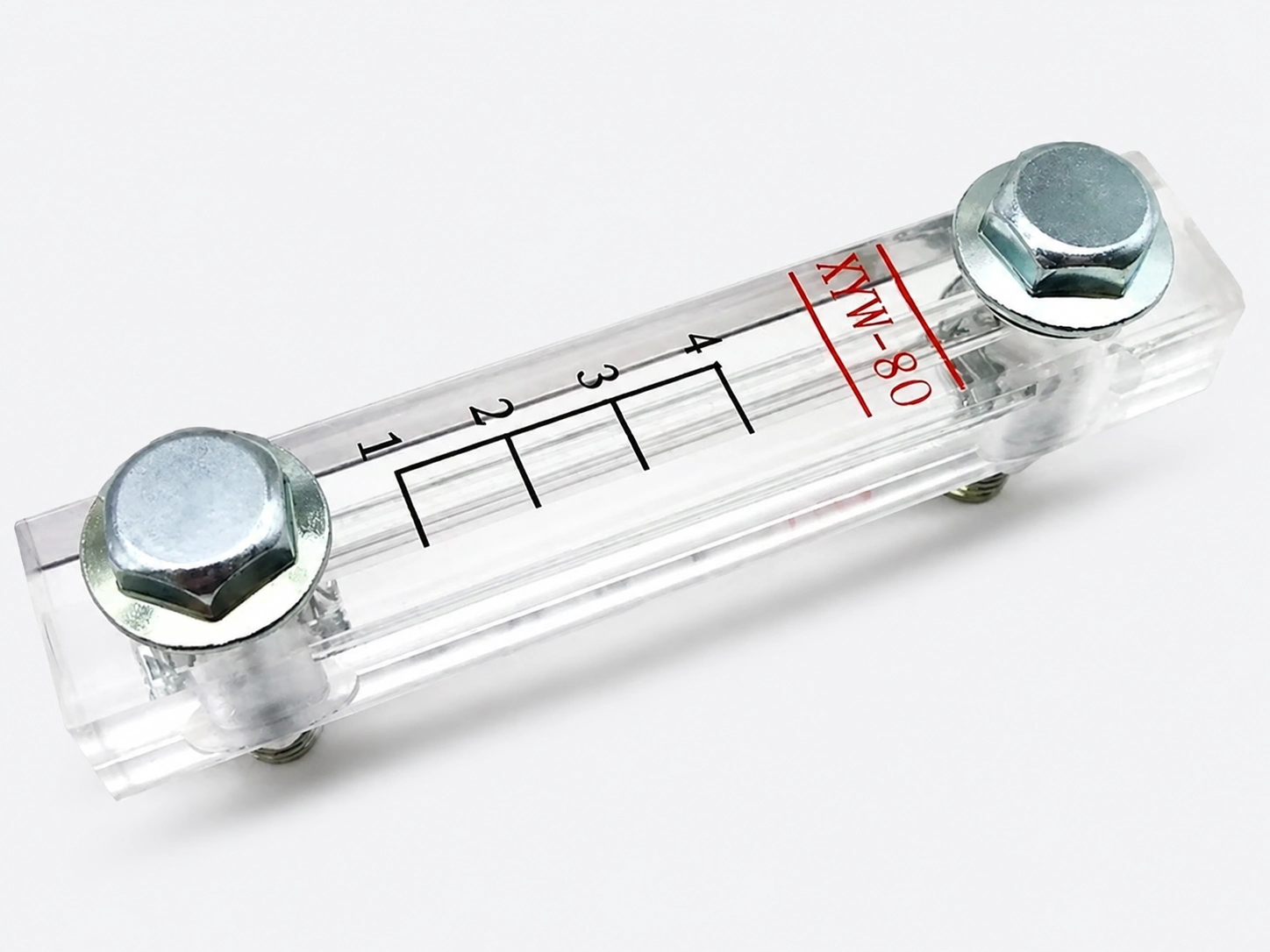

The Acrylic Bolt-On Oil Level Indicator is a compact mechanical device designed for direct visual monitoring of oil inside tanks and equipment. Its transparent acrylic body forms a vertical viewing channel, allowing operators to check the oil level quickly without opening the tank or using electrical sensors.
The indicator is mounted vertically to the tank wall using upper and lower bolts. Oil enters the viewing channel through the lower connection and rises to the same level as the oil inside the tank. The upper connection balances the pressure, enabling the displayed level to follow changes inside the tank.
The clear PMMA body offers good transparency and resistance to mineral oil, grease, weak alkalis, and diluted inorganic acids. Compared with a glass tube assembly, its one-piece structure is compact, lightweight, and less susceptible to accidental breakage. A marked level line, scale, or MIN/MAX indication can be added for easier inspection.
This bolt-on oil level gauge is commonly used on:
Distribution transformer tanks and conservators
Hydraulic oil reservoirs
Gearboxes and reduction units
Lubrication systems
Pumps, compressors, and industrial machinery
Low-pressure oil storage equipment
Size
| Model | Width (mm) | Thickness (mm) | Center to center Distance (mm) | Total Length (mm) | Bolt |
|---|---|---|---|---|---|
| XYW-50 | 22 | 18 | 50 | 78 | M10*1.5 |
| XYW-60 | 22 | 18 | 60 | 88 | M10*1.5 |
| XYW-76 | 22 | 18 | 76 | 105 | M10*1.5 |
| XYW-80 | 22 | 18 | 80 | 110 | M10*1.5 |
| XYW-100 | 22 | 18 | 100 | 130 | M10*1.5 |
| XYW-125 | 22 | 18 | 125 | 155 | M10*1.5 |
| XYW-127 | 22 | 18 | 127 | 156 | M10*1.5 |
| XYW-150 | 22 | 18 | 150 | 180 | M10*1.5 |
| XYW-160 | 22 | 18 | 160 | 193 | M10*1.5 |
| XYW-200 | 22 | 18 | 200 | 233 | M10*1.5 |
| XYW-250 | 22 | 18 | 250 | 285 | M10*1.5 |
| XYW-300 | 22 | 18 | 300 | 335 | M10*1.5 |
| XYW-350 | 31 | 17 | 350 | 385 | M10*1.5 |
| XYW-400 | 31 | 17 | 400 | 435 | M10*1.5 |
| XYW-450 | 31 | 17 | 450 | 485 | M10*1.5 |
| XYW-500 | 31 | 17 | 500 | 535 | M10*1.5 |
| XYW-550 | 31 | 17 | 550 | 585 | M10*1.5 |
| XYW-600 | 31 | 17 | 600 | 635 | M10*1.5 |
| XYW-800 | 31 | 17 | 800 | 835 | M10*1.5 |
| XYW-1000 | 31 | 17 | 1000 | 1035 | M10*1.5 |
CUSTOM MANUFACTURING
Need a Custom Size or Specification?
Send your drawing, sample, dimensions, material requirements, operating temperature, pressure and process medium. We will review the application and confirm the suitable product specification before production.
Standard products and OEM/ODM solutions available.
